Remote Controlled Skid Steer Loader

Skid Steer Loaders

● Products :Remote Controlled Skid Steer Loader

● Type :Skid Steer Loaders

● Brand :HAMAC

● Origin :China

If you want to know more details, please contact us, we will reply you as soon as possible.

Product Introduction
With Remote Control operation, you control your loader without having to be in the cab. Completely portable, and designed for the worst working environments*, the Radio Remote Control system is installed or removed in minutes for easy use with multiple machines. The system is available for HAMAC skid-steer and compact track loaders equipped with Selectable Joystick Controls. It’s also compatible with All-Wheel Steer loaders.This is a smart solution for hot, dusty environments or on jobs where you’d rather be outside of the machine. For example, two people are sometimes required for operating attachments such as planers and wheel saws. One person guides the placement of the attachment using hand signals, while the other operates the loader. With the Radio Remote Control System, this same job can be done with one person, and the operator can operate the loader from a distance, free from dust and noise.The Radio Remote Control System is valuable in approved applications including concrete, demolition, highway and asphalt planing, fire breaks, stump removal, poultry barns, shipping yards, nuclear power plants, foundries, mining, chemical plants and municipalities.
Benefits & Features
1. Adopts world-famous remote control system and electric components, the main machine and attachment can be controlled by the remote control distance within 800 meters range;

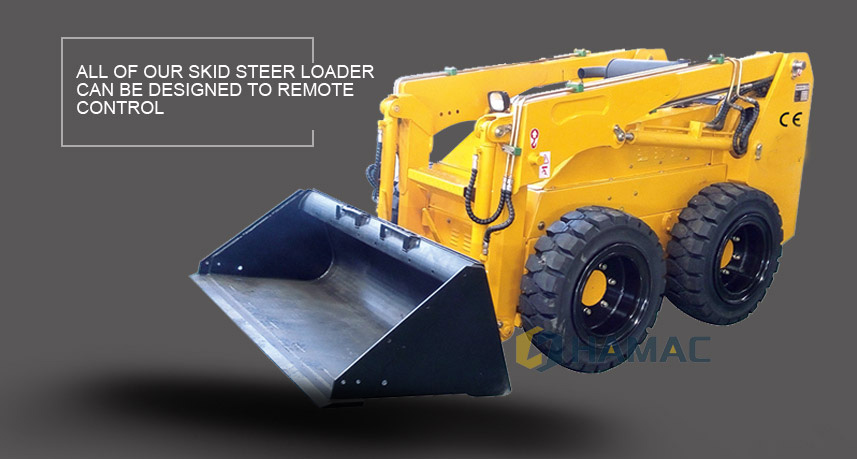

2. All of our skid steer loader can be designed to remote control;
3. We can optimized the skid steer loader according to customers' requirement. Our remote controlled skid steer loader is being widely used for fire fighting, underwater work and special work.

Tags: tracks for wheeled skid steer in Caloocan caterpillar track skid steer for sale in Caloocan skid steer on tracks for sale in Caloocan ready mix concrete plants for sale in Darth maliasMalaysia concrete batching plantself loading transit mixerconcrete batch plant for sale

More Info
Combination Bucket
Combination Bucket
Pallet Forks
Pallet Forks
Dozer Blade Grader Leveler
Dozer Blade Grader Leveler
Snow Pusher
Snow Pusher
Grapple Bucket
Grapple Bucket
Grapple Rake
Grapple Rake
Bale Squeeze
Bale Squeeze
Grapple Rock Bucket
Grapple Rock Bucket
Hay Spear
Hay Spear
Digging Backhoe
Digging Backhoe
Utility Digging Backhoe
Utility Digging Backhoe

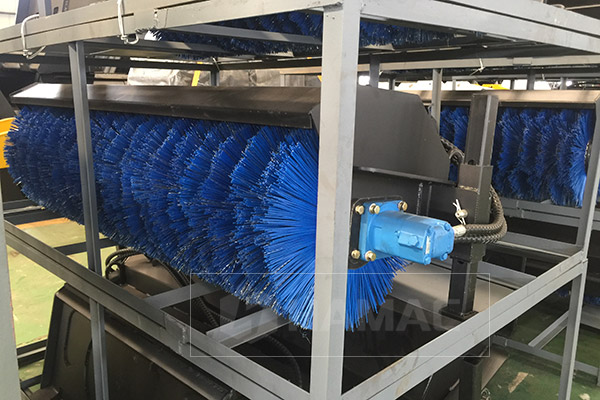

Pick Up Broom
Pick Up Broom
Tree Spade
Tree Spade

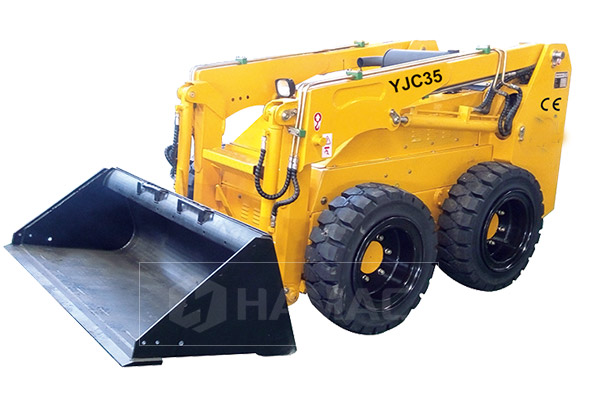

Model YJC35 YTS100
Operating Load (kg) 500 1200
Max. Speed (km/h) 10 12/18
Hydraulic flow (L/min) 60 88
Tire Model 8.5-15 320*84
Rated Power (kW) 29.5 74
Fuel tank Volume (L) 60 90
Self Weight (kg) 2300 4500
Bucket Volume (m³) 0.3 0.55

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Structure Data:

Main data/ Model YJC35 YTS100
Overall operating height (mm) 2825 4070
Height to bucket hinge pin (mm) 2200 3150
height to top of cab (mm) 1355 2160
Height to bottom of level bucket(mm) 2033 2983
Overall length without bucket(mm) 2300 3000
overall length with bucket(mm) 2950 3700
Dumping angle at maximum height(° ) 40 40
Dumping height(mm) 1525 2450
Dumping reach(mm) 790 700
Rollback o bucket on ground(° ) 30 30
Rollback of bucket at full height(° ) 104 104
Wheelbase(mm) 897 1500
Ground clearance(mm) 140 200
Angle of departure(° ) 20 20
Front turning radius without bucket(mm) 1098 1365
Front tuning radius(mm) 1760 2200
Rear tuning radius(mm) 1296 1742
Rear axle to bumper (mm) 964 938
Tread width, centerline to centerline (mm) 1080 1654
Width (mm) 1350 1994
Bucket width (mm) 1400 2030

M series Wheeled Skid Steer Loader

Z series Wheeled Skid Steer Loader

B series Wheeled Skid Steer Loader

C series Wheeled Skid Steer Loader

L series Wheeled Skid Steer Loader

V series Wheeled Skid Steer Loader

Y series Wheeled Skid Steer Loader

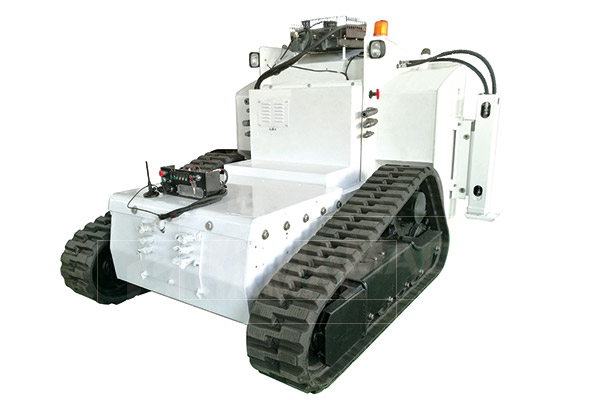

TS series Crawler Skid Steer Loader
