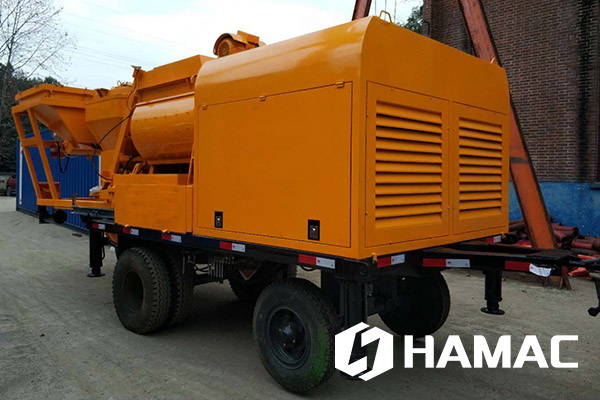

HBT25-L1 Concrete Mixer Pump

Concrete Mixer With Pump

● Products :HBT25-L1 Concrete Mixer Pump

● Type :Concrete Mixer With Pump

● Brand :HAMAC

● Origin :China

If you want to know more details, please contact us, we will reply you as soon as possible.

Product Introduction

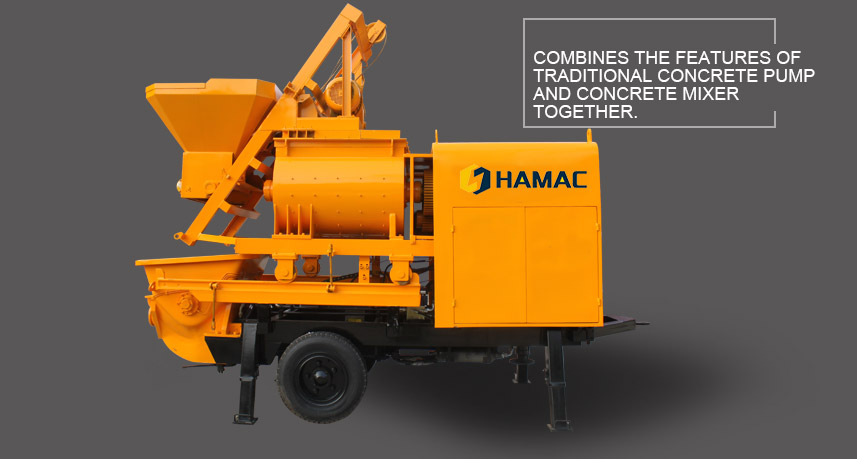

HBT25-L1 Electric Concrete Mixer Pump is a very useful machine which definitely combines the features of traditional concrete pump and concrete mixer together. It can reach the function of feeding, blending, mixing and pumping First the pump gets into the mixing system, after that it enters into the pumping system. And then it is pumped to the construction spots with the help of conveying pipes. Thanks to its fully automated construction operating system, the whole process is finished in a very short time. As one of the most popular concrete conveying equipment, more and more customers become interested in it.

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - Get quote or inquiry!
Benefits & Features
1. Electric driven, it is suitable for the working sites which can provide power supply;
2. Mixer and pump, combined in one machine, easy to be moved;
3. Forced type concrete mixer, compared with drum type concrete mixer, concrete quality is better;
4.PLC controlled, work stable, working life longer;
5. Compact design, the concrete mixer can slide on the railway.

Tags: JS500 Twin Shafts Concrete Mixer with pump in Anhels JS500 concrete mixer and pumping truck in Anhels Concrete mixing pump truck in Anhels Concrete Mixer Truck price in Manilamolen concrete mixerbenford concrete mixerconcrete pump car capacity

More Info
HBT15-L1 Electric Concrete Mixer Pump
Parts Name/Parameters Parts Specification
Models HBT25-L1
Power Power supply model Local electricity 3P
Electric Component  Siemens/Schneider/Omron
Mixing System Mixer JS500 twin shafts concrete mixer, 800L charging hopper, 500L concrete output per batch
Mixing Motor 18.5kW
Hoist Motor 5.5kW
Submersible Pump 0.75kW
Max. Theoretical Mixing Output 25m³/h
Pumping System Main Motor 37KW
Motor Rated Speed 1480 RPM
Mian Hydraulic Oil Pump KAWASAKI K3V112
Double Gear Pump 25&16
 Valves overflow and directional valves, OM, Italy brand
Main Oil Cylinder Φ100*Φ70*1000mm
Delivery Cylinder Φ200*1000mm
S Valve Φ200mm
Cutting Ring Φ200mm
Glass Wear Plate Φ200mm
Max. Theoretical Pumping Output 40m³/h
Outlet Pressure 8Mpa
Hydraulic System Type Open circuit
Motor Rated Voltage Customized
Max. Aggregate Size Pebble:40mm  Aggregate:30mm
Delivery height and horizontal distance 70m/300m
Hydraulic Oil Tank Volume 200L
Concrete Outlet Diameter  Φ180mm
Hopper Capacity × Filling Height 600*1400 (L*mm)
Machine Size(LxWxH) 5100*2200*2450 mm
Total Weight 7000kgs
Tyre Size 700R16
Towing Speed Max. 8km/h

Note: Our products are being updated constantly, all rights reserved by HAMAC.
