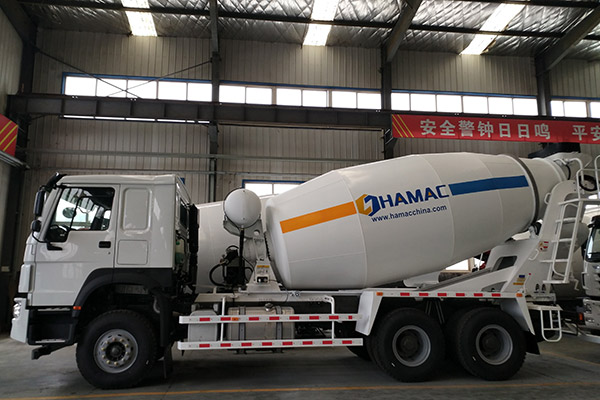

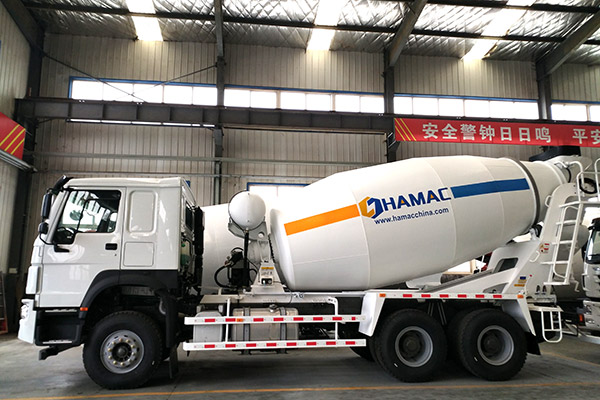

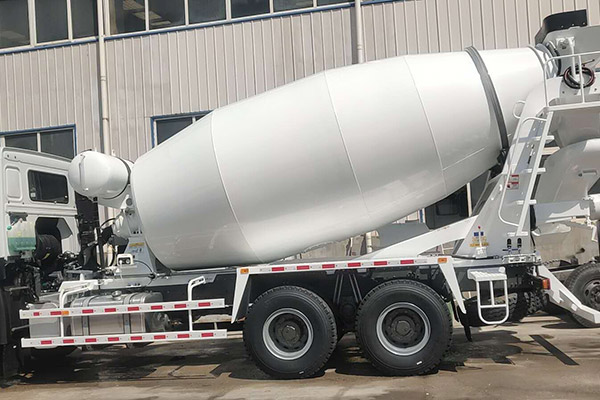

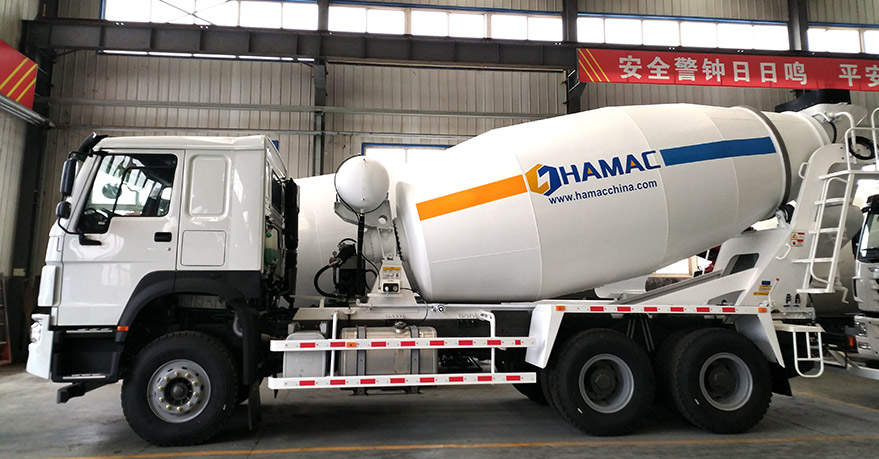

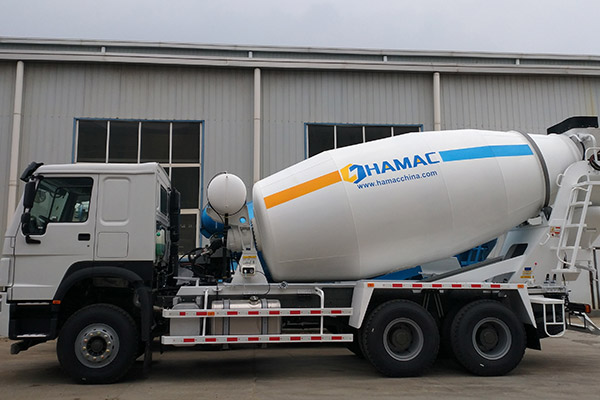

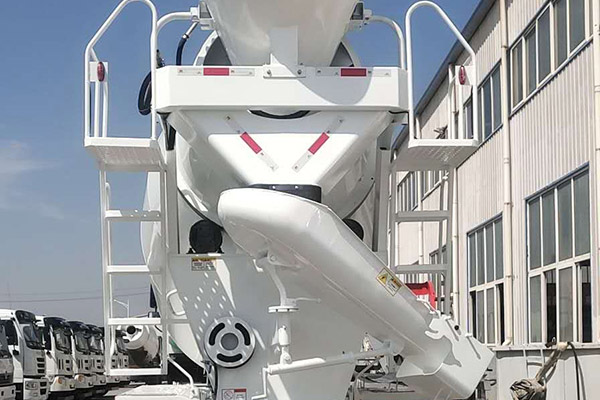

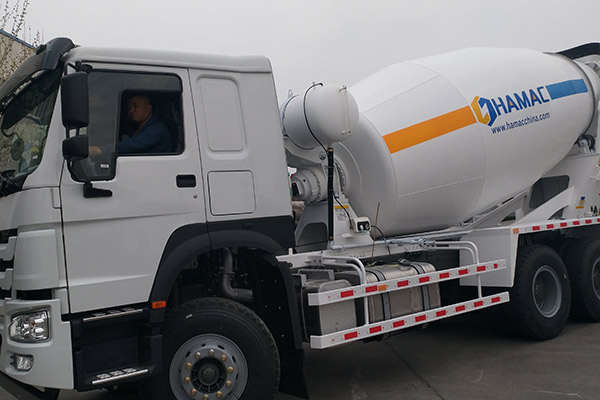

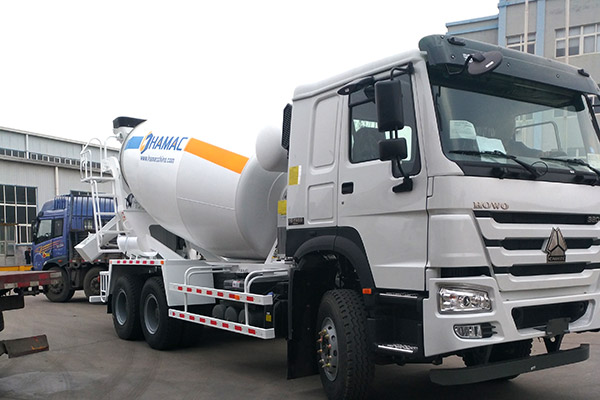

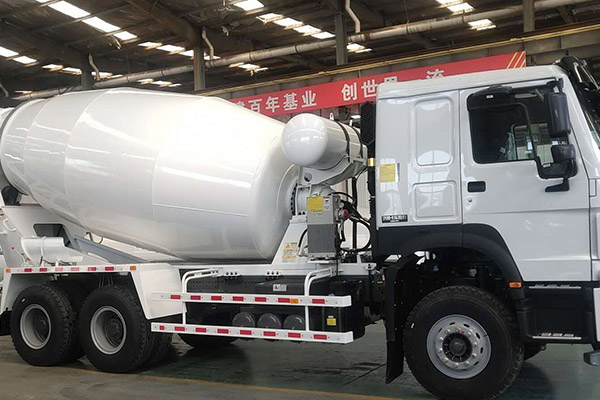

12cbm Concrete Mixing Truck

12cbm Concrete Mixing Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.

12cbm Concrete Mixing Truck  has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.



1.  Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.

2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer

Tags: ajax fiori self loading mobile concrete mixture in Wenzhen Yuba bulk concrete mixer in Danlu Hydraulic Transit Mixer in Danlu mobile brick making machine in The law of depictioncement mixing plants in rizalBoom Pumps in Davaoconcrete batch plant capacity

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

Overall parameter( Concrete Transit Mixing Truck 12m³)
Overall dimension	9800x2500x3980mm（Approx）
Kerb weight	14700kg（Approx）
Mixing Drum parameter
Mixing drum material	High quality wear-resistance steel
	Model:Q345
	Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity	12m3
Drum overall dimension(with frame)	7100*2500*2730mm
Charging rate	≥3 m3/min
Top feed hopper dimension	≥650 mm
Discharging rate	≥2 m3/min
Residual rate	≤0.5%
Water supply	Baric water supply system
Water tank capacity	450L
Radiator	18L
Reduction gear	TOP T68 Reducer, Italy Brand
Hydraulic pump	EATON 54, American Brand
Hydraulic motor	EATON 54, American Brand
Accessory	Tool box
Chassis parameter
Chassis Brand	SINOTRUCK chassis
Wheelbase (mm)	3825+1350
Drive model	Left hand drive
Quantity of axis	3
Engine	SINOTRUCK  D10.34-40
Engine Power	340hp
Emission Standard	EUR IV
Tire	12.00R20

Note: Our products are updated constantly, if there is any data discrepancy, please refer to the actual product.
